Automatically Differentiable Physics for Maximizing the Information Gain of Cosmological Surveys


Denise Lanzieri










slides at github.com/dlanzieri/talks/IN2P3_workshop_2021

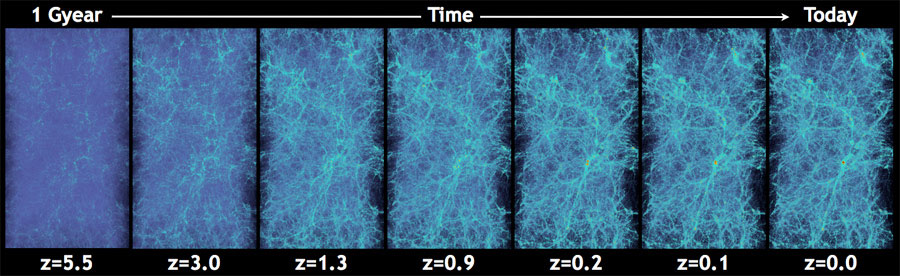

the $\Lambda$CDM view of the Universe

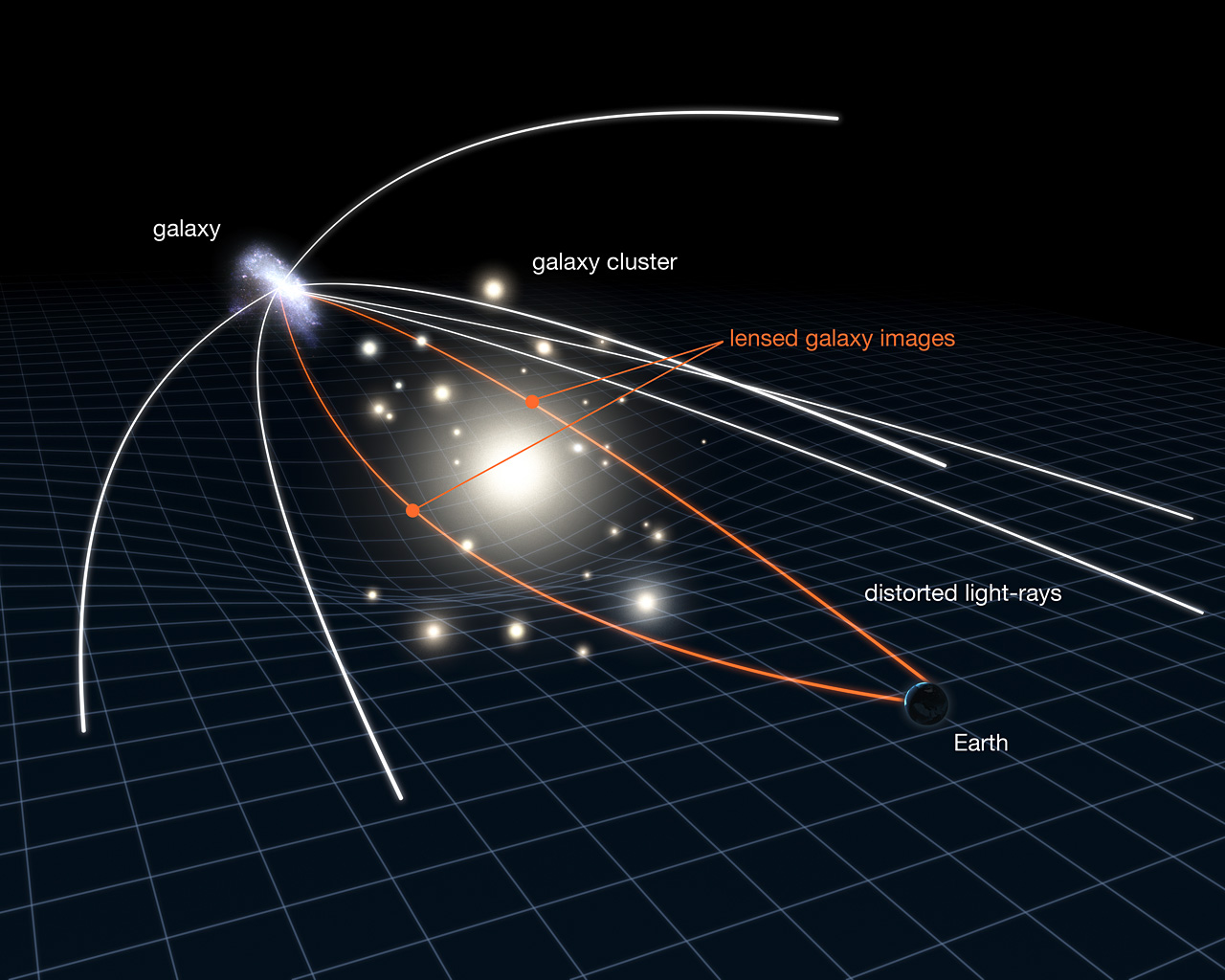

Weak Gravitational lensing

2 Point Statistics: A Suboptimal Measure

How do we make the most of the available data?

HSC cosmic shear power spectrum

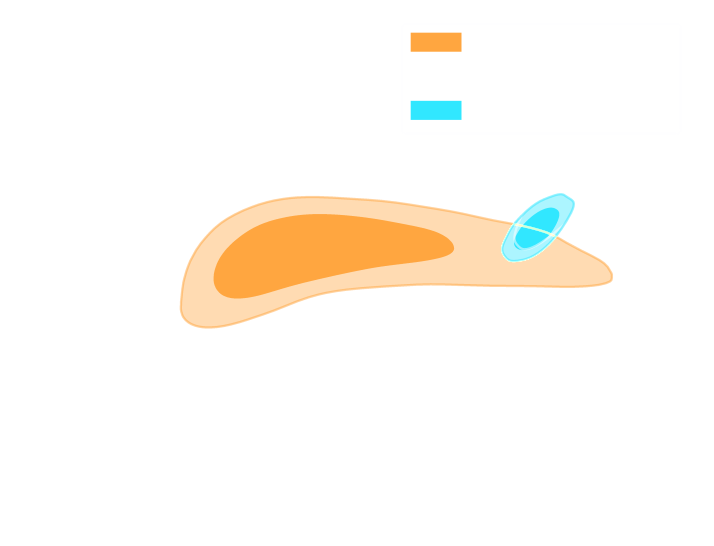

HSC Y1 constraints on $(S_8, \Omega_m)$
(Hikage,..., Lanusse, et al. 2018)
  • Standard Weak lensing analysis:

    • Shear $\gamma$

    • Data reduction

    • Power spectrum
    Main limitation: The lensing convergence field is inherently and significantly non-Gaussian
    The two-point statistics do not fully capture the non-Gaussian information encoded in the peaks of the matter distribution

    $\Longrightarrow$ We are dismissing most of the information!

    How to maximize the information gain?

    Cosmological constraints from the combination of different summart statistics
    (Ajani, et al. 2020)
    • Approaches based on measuring high-order correlations to access the non-Gaussian information
      e.g. the Peaks count,
      Starlet $l_1$-norm

    • Investigate the constraining power of various map-based higher order weak lensing statistics

    • How can we do that in a fast and accurate way?
      $\Longrightarrow$ Fisher Information

    Fisher Matrix

    \[\begin{equation} F_{\alpha, \beta} =\sum_{i,j} \frac{d\mu_i}{d\theta_{\alpha}} C_{i,j}^{-1} \frac{d\mu_j}{d\theta_{\beta}} \end{equation} \]
    • Use Fisher matrix to estimate the information content extracted with a given statistic

    • Derivative of summary statistics respect to the cosmological parameters.
      e.g. the $\Omega_c$, $\sigma_8$

    • Estimate derivative with final differences


    Numerical Differentiation

    \[\begin{equation} \left.\frac{df(x)}{dx}\right|_{x_1} \approx \frac{f(x_1+h)-f(x_1)}{h} \end{equation} \]
      Flaws :
    • It’s numerically very unstable

    • It’s very expensive in term of simulation time

    • Computes an approximation

    Different approach :

    Automatic Differentiation

    Cosmological N-Body Simulations


    How do we simulate the Universe in a fast and differentiable way?

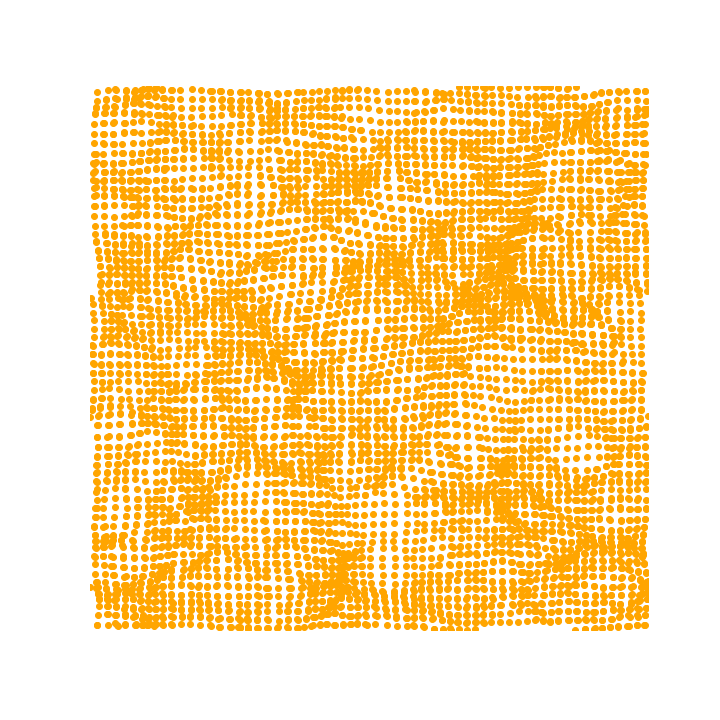

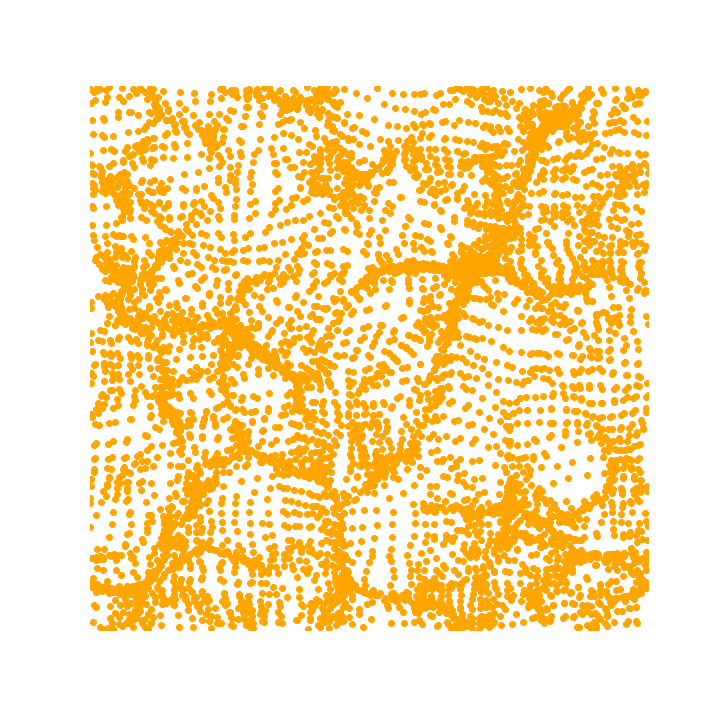

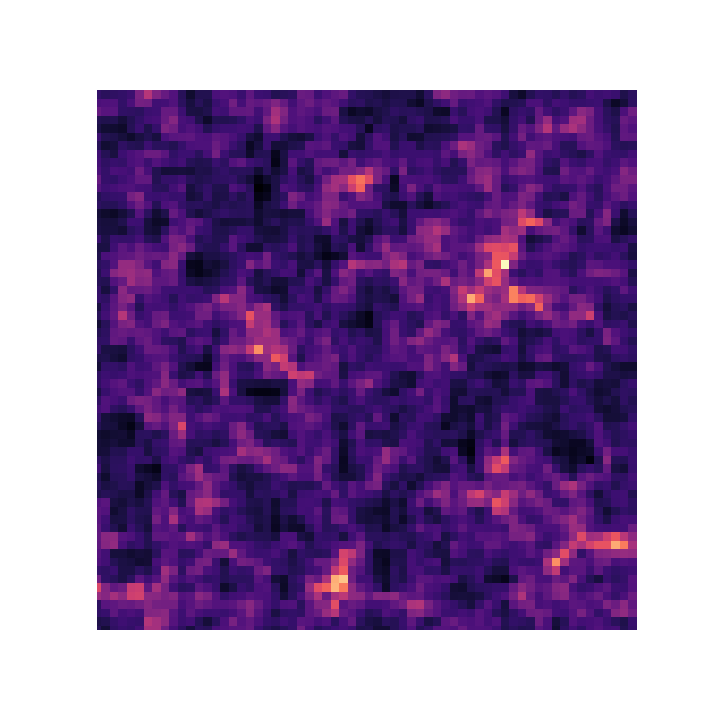

    The Particle-Mesh scheme for N-body simulations

    The idea: approximate gravitational forces by estimating densities on a grid.
    • The numerical scheme:

      • Estimate the density of particles on a mesh
        $\Longrightarrow$ compute gravitational forces by FFT

      • Interpolate forces at particle positions

      • Update particle velocity and positions, and iterate

    • Fast and simple, at the cost of approximating short range interactions.
    $\Longrightarrow$ Only a series of FFTs and interpolations.

    introducing FlowPM: Particle-Mesh Simulations in TensorFlow


    											import tensorflow as tf
    											import flowpm
    											# Defines integration steps
    											stages = np.linspace(0.1, 1.0, 10, endpoint=True)

    											initial_conds = flowpm.linear_field(32,        # size of the cube
    											100,       # Physical size
    											ipklin,    # Initial powerspectrum
    											batch_size=16)

    											# Sample particles and displace them by LPT
    											state = flowpm.lpt_init(initial_conds, a0=0.1)

    											# Evolve particles down to z=0
    											final_state = flowpm.nbody(state, stages, 32)

    											# Retrieve final density field
    											final_field = flowpm.cic_paint(tf.zeros_like(initial_conditions),
    											final_state[0])

    											with tf.Session() as sess:
    											sim = sess.run(final_field)

    • Seamless interfacing with deep learning components

    Lensing simulations: The Born Approximation



    • Numerical simulation of WL features a rely on ray-tracing through the output of N-body simulations​

    • Knowledge of the Gravitational potential and accurate solvers for light ray trajectories is computationally expensive

    • Born approximation , only requiring knowledge of the density field, can be implemented more efficiently and at a lower computational cost


    \[\begin{equation} \kappa_{born}(\boldsymbol{\theta},\chi_s)= \frac{3H_0^2 \Omega_m}{2c^2} \int_0^{\chi_s} d\chi \frac{\chi}{a(\chi)} W(\chi,\chi_s) \delta(\chi \boldsymbol{\theta},\chi). \end{equation} \]

    Preliminary results

    • Convergence map at z=1.0, based on a 3D simulation of side length 200 Mpc/h and $64^3$ particles. The 2D lensing map has an angular extent of $5^{\circ}.$

    • Angular Power Spectrum $C_\ell$

    • The Jacobian: \[\begin{equation} \frac{dC_l}{d\Omega_c}, \end{equation} \] \[\begin{equation} F_{\alpha, \beta} =\sum_{i,j} \frac{d\mu_i}{d\theta_{\alpha}} C_{i,j}^{-1} \frac{d\mu_j}{d\theta_{\beta}} \end{equation} \]
    • Constraints on cosmological parameter $\Omega_c$:

    Conclusion

    Conclusion

    What can be gained by simulating the Universe in a fast and differentiable way?

    • Differentiable physical models for fast inference
      • Forecasts on differentiable higher-order statistics, including peak counts, L1 norm, etc.
      • Inference of the full posterior distribution by using the Hamiltonian Monte Carlo (HMC) method


    • Investigate the constraining power of various map-based higher order weak lensing statistics


    Thank you !
